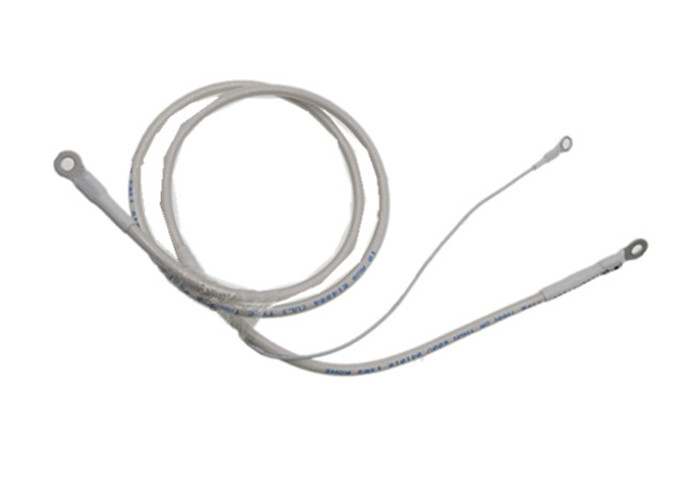

RNB 1.25-4S Bolt 4.3mm Mc3 Mc4 Copper Wire Terminal To 5.5-4L
Circular Terminal With 10awg
Electrical Characteristics
| Cross-Section of wire:0.5-1.5(mm²) | A.W.G(22-16) | Imax=19A | Standard thickness:copper 0.7mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2φ | W | L | F | H | Dφ |
| mm | mm | mm | mm | mm | mm | |
| RNB1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNB1.25-3.5S | #6 | 3.7 | 5.7 | 12.6 | 4.95 |
| RNB1.25-3.5M | #6 | 3.7 | 6.6 | 14.4 | 6.3 |
| RNB1.25-3.5L | #6 | 3.7 | 7.2 | 15.8 | 7 |
| RNB1.25-4S | #8 | 4.3 | 6.6 | 14.4 | 6.3 |
| RNB1.25-4L | #8 | 4.3 | 8 | 15.8 | 7 |
| RNB1.25-5S | #10 | 5.3 | 8 | 15.8 | 7 |
| RNB1.25-5M | #10 | 5.3 | 9.5 | 18 | 8.5 |
| RNB1.25-5L | #10 | 5.3 | 11.6 | 21.8 | 11.1 |
| RNB1.25-6S | 1/4 | 6.5 | 9.5 | 18 | 8.5 |
| RNB1.25-6 | 1/4 | 6.5 | 11.6 | 21.8 | 11.1 |
| RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 |
| RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 |
| RNB1.25-12 | 1/2 | 13 | 19.2 | 30.4 | 16 |
lead section: 1.5~2.5mm2(A.W.G: 16~14) Imax=27A material:pure
copper thickness:0.8mm
|
| Item NO | USA BOLT NO | BOLT dia.d2(mm) | dimension(mm) |
| w | L | F | H | Dφ | d1 |
| RNB 2-3.2 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS 2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 |
| RNBM 2-3.5 | #6 | 3.7 | 6.6 | 16 | 7 |
| RNBL 2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 |
| RNBS 2-4 | #8 | 4.3 | 6.6 | 16 | 7 |
| RNBL 2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 |
| RNBS 2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 |
| RNBL 2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 |
| RNB 2-6 | 1/4 | 6.4 | 12 | 21.8 | 11 |
| RNB 2-8 | 5/16 | 8.4 | 12 | 21.8 | 11 |
| RNB 2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 |
| RNB 2-12 | 1/2 | 13 | 19.2 | 31 | 16.5 |
lead section: 2.5~4mm2(A.W.G: 14~12) Imax=37A material:pure copper
thickness:1.0mm
|
| Item NO | USA BOLT NO | BOLT dia.d2(mm) | dimension(mm) |
| w | L | F | H | Dφ | d1 |
| RNB 3.5-4 | #8 | 4.3 | 8 | 18 | 7.7 | 6 | 5 | 3 |
| RNBS 3.5-5 | #10 | 5.3 | 8 | 18 | 7.7 |
| RNBL 3.5-5 | #10 | 5.3 | 12 | 21.4 | 7.7 |
| RNB 3.5-6 | 1/4 | 6.4 | 12 | 21.4 | 7.7 |
| RNB 3.5-8 | 5/16 | 8.4 | 15 | 28 | 13.7 |
lead section: 4~6mm2(A.W.G: 12~10) Imax=48A material:pure copper
thickness:1.0mm
|
| Item NO | USA BOLT NO | BOLT dia.d2(mm) | dimension(mm) |
| w | L | F | H | Dφ | d1 |
| RNB 5.5-3.5 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNBS 5.5-4 | #8 | 4.3 | 7.2 | 15.7 | 5.9 |
| RNBL 5.5-4 | #8 | 4.3 | 9.5 | 19.8 | 8.3 |
| RNB 5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 |
| RNB 5.5-6 | 1/4 | 6.4 | 12 | 25.8 | 13 |
| RNB 5.5-8 | 5/16 | 8.4 | 15 | 28 | 13.7 |
| RNB 5.5-10 | 3/8 | 10.5 | 15 | 28 | 13.7 |
| RNB 5.5-12 | 1/2 | 13 | 19.2 | 32.4 | 16 |
lead section: 6~10mm2(A.W.G.8) Imax=62A material:pure copper
thickness:1.2mm
|
| Item NO | USA BOLT NO | BOLT dia.d2(mm) | dimension(mm) |
| w | L | F | H | Dφ | d1 |
| RNB 8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RNBS 8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 |
| RNBM 8-5 | #10 | 5.3 | 12 | 23.8 | 9.3 |
| RNBL 8-5 | #10 | 5.3 | 15 | 29.8 | 13.8 |
| RNBS 8-6 | 1/4 | 6.4 | 12 | 23.8 | 9.3 |
| RNBS 8-8 | 5/16 | 8.5 | 15 | 29.8 | 13.8 |
| RNBS 8-10 | 3/8 | 10.5 | 15 | 29.8 | 13.8 |
| RNBS 8-12 | 1/2 | 13 | 20 | 33.5 | 15 |
Wire Harness Applications:
1. Wire Harness for LCD
2. Wire Harness for Medical system/monitoring
3. Wire Harness for Advertising machine
4. Wire Harness for Monitoring
5. Wire Harness for Back projection
6. Wire Harness for TV
7. Wire Harness for Notebook
8. Wire Harness for Laptop
9. Wire Harness for PC and Computer
10. Wire Harness for PDA
11. Wire Harness for DVD
12. Wire Harness for Digital camera
13. Wire Harness for HDD
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our Services:
1. Connector mold, injection mold, terminal mold used in your
projects can be designed or copied.
2. We also can supply all components for wiring harness, such as
connectors, terminals, seals, cables, bellows and so on.
3. we equipped with terminal detection/pulling force
measurement/electrical string checkout/cable harness
tester/resistance tester/microscope to promise every species of
connector, terminal, annular tubes, electrical wire are 100%
qualified.
4. ODM/OEM order, trial order and customized cable are welcomed.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with
each other, the samples will be ready for 3-5 days. The samples
will be sent to you via express and arrive in 3-5 days. You can use
your own express account or prepay us if you do not have an
account.
4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire
harness & cable assembly design. Just let us know your ideas and we
will help to carry out your ideas into perfect products. It does
not matter if you do not have someone to complete files. Tell us
your detalied SPEC. of products, and we will send you finished
drawing for confirmation.
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to15 days. Generally
speaking, all of the goods can be reach your address within 4
weeks.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
