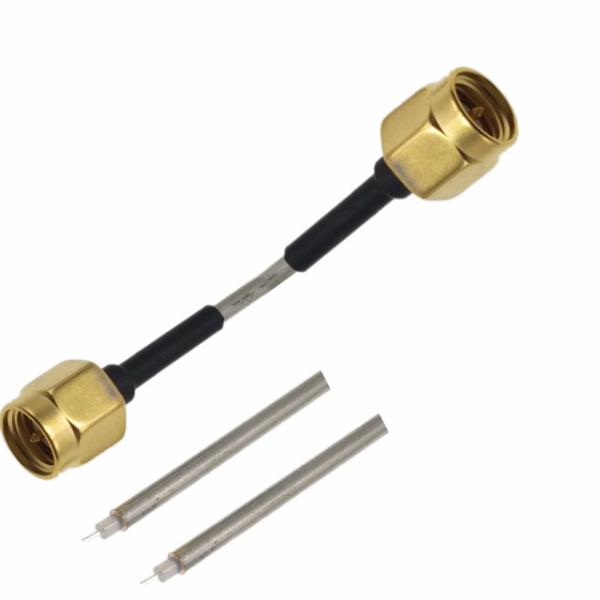

SMA Male To SMA Male Straight With RG407 Semi-rigid RF Pigtail
Coaxial Cable For Modular
What Is The Purpose Of Coaxial Cable?
Coaxial cable refers to the cable with two concentric conductors,
and the conductor and shielding layer share the same axis. The most
common coaxial cable is composed of copper conductor isolated by
insulating material. On the outside of the inner insulating
material is another layer of ring conductor and insulator, and then
the whole cable is wrapped by PVC or sheath. At the same time,
coaxial cable is widely used in radio frequency or audio and video
transmission. The transmission impedance is generally 75 Ω, which
has become the standard impedance of video transmission. High
quality standard coaxial cable is generally more expensive than
twisted pair, because the reliable physical characteristics of
coaxial cable can provide excellent performance for audio and
video. The frequency and resolution of the signal and the effective
transmission distance of the cable also play a decisive role in the
audio and video system.
Electrical Characteristics:
ELECTRICAL DATA |
Impedance | 50 Ohm |
Frequency range | DC-20Ghz |
VSWR | 1.3 max |
Voltage | 60V |
Insulation Resisitance | 500 M Ohm min. |
Insertion Loss | 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ |
MATERIAL DATA |
Bodies | Brass--gold/nickel plating |
Pin contacts | Brass--gold plating |
Socket contacts | Copper-beryllium alloy--Au plating |
Insulator | PTFE |
Cable type | 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240,LMR400,Semi-rigid,semi-flexible,super
flexible, Formable,etc |
Application | smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc |
Temperature range | -40°C to +80°C/200°C |
Coaxial cable is sometimes called RF cable or RF coaxial cable.
Coaxial RF cable is the most commonly used structure. Because the
inner and outer conductors are concentric, the electromagnetic
energy is limited in the medium between the inner and outer
conductors, so it has the advantages of small attenuation, high
shielding performance, wide frequency band and stable performance.
It is usually used to transmit RF energy from 500 kHz to 18 GHz.
Coaxial cable has two concentric conductors, and the conductor and
shield share the same axis. The most common coaxial cable is
composed of copper conductor isolated by insulating material.
Outside the inner insulating material is another layer of ring
conductor and its insulator, and then the whole cable is wrapped by
PVC or sheath. Coaxial cable can be divided into 50 Ω baseband
cable and 75 Ω broadband cable. Baseband cable is divided into thin
coaxial cable and thick coaxial cable. Baseband cable is only used
for digital transmission, and the data rate can reach 10Mbps.
