CAT6 Flat UTP Ethernet Network Ethernet Cable RJ45 Patch LAN
Slim-line Patchkabel
Features:
Brand new and high quality.

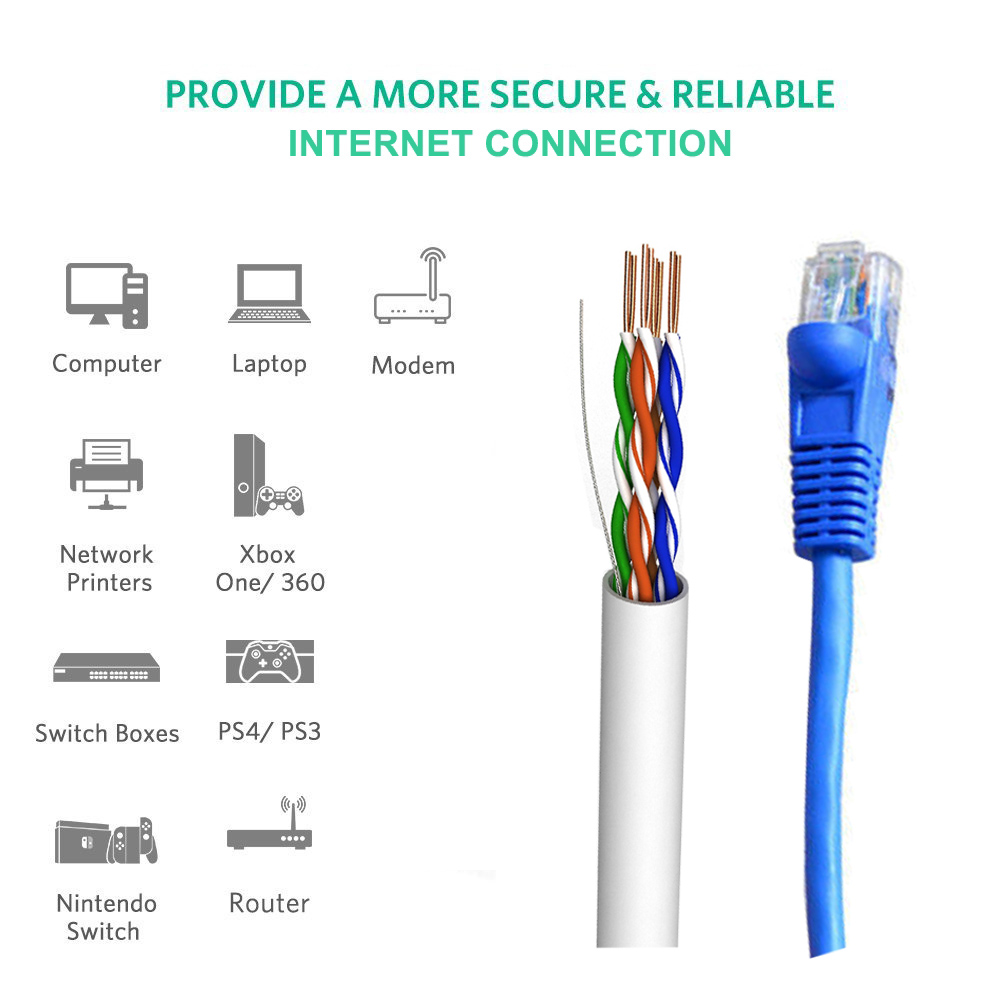

Cat6 cables are used for networking, data transfer, and phone lines
primarily. connect a PC to a DSL/
Cable modem, hub, switch and router. Connect DSL/Cable modem, Hub,
switch, router. Support 10 /
100 / 1000 Mbps.
Flat cables fit easily between cramped spaces improving the look of
your home or office because they
are flat and easy to hide. These flat cables are a perfect fit
under carpets, up walls, and even behind
furniture.
Key Specification:
Specification | Cable Spec | CAT 8 CAT7 CAT6 CAT5 32AWG 30AWG 28AWG 4pairs | Cable Length | 6ft, 10ft, 15ft, 25ft, 50ft, (Custom Length available) | Color | Black, Beige ,Blue(Custom Color available) | Diameter | OD:1.5*6.5mm | Wire Gauge | 32AWG 30AWG 28AWG 26AWG | Conductor | bare copper(BC),Tin plated copper(TC)(optional) | Certificate | RoHS,UL,CE,FCC | Plug mould | PVC molding, plastic shell , metal shell | Connector | gold-plated | Electrical Properties | Quality Control | 100% open & short test | Voltage | DC300V 5M ohm/10ms | Insulation Resistance | 10M min | Contact Resistance | 2 ohm max | Working Temperature | -25C-80C | Data transfer rate | 10.2Gbps Max | Differential Impedance | 100±10Ω(TDR) | Complies with | TIA/EIA 568B standard |
|
1. RJ45 crystal head is a connector with 8 pins, which is mainly
used in Ethernet. "RJ" represents the registered jack, "45"
represents the serial number of interface standard. RJ45 crystal
head is usually terminated on Ethernet cable to connect various
network devices, such as computers, routers, switches, etc.
2. RJ11 crystal head is very similar to RJ45 crystal head, but it
has only four pins. It is a connector developed by Western
Electronics Company, which is often used to connect telephone and
modem. It should be noted that RJ11 usually refers to 6-position
(6-pin) modular jack or plug, but only 4-pin is used. In addition,
RJ11 is also used for 4-pin version of modular connector.
3. RJ 12 is a 6-Piece connector with its 6 positions and 6
conductors, which can be used as a telephone line. Although this
technology is still in place, it seems to be a mobile technology
that has been eliminated by many people. It is important to note
that RJ11 and rj12 use the same switch, with the main difference
between two RJ11 using only 4 positions and using all positions
rj12. The type that can be relied on can be a telephone or CAT5
cable.
4. RJ45 crystal head is a connector with 8 grooves and 8 contacts
(8p8c), while RJ11 crystal head usually has only 6 grooves and 4
contacts (6p4c), so the volume of RJ45 crystal head is larger than
RJ11 crystal head. RJ11 crystal head can usually be inserted into
RJ45 interface, otherwise it can't, but it is strongly recommended
not to use RJ11 crystal head for RJ45 interface.
5. RJS can be used by a local service provider or even a remote
provider. There are several standards to register jack, and their
naming depends on the wiring. These include RJ11 registered jack,
RJ14, RJ21, rj48 and RJ45. Two of the most commonly used RJS around
the world are RJ 12 and RJ 45. It is these two registered jacks
that can be seen from their differences. It is important to note
that the type of connector used for RJ physical connector module
and micro ribbon connector is important.
Pertinent Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
3. Quality is important for us and for the customer, the client’s
demand is more supreme. We create an easier, less costly and
extremely satisfactory way of business. Striving to achieve
improving results through our continuous innovating and technical
engineer’s effort, we create values to turn the antenna / Cable /
Harness to your exact demand.
4. We guarantee every antenna / Cable / Harness we offered must be
tested by network analyzer / Precision Low Voltage Wire Tester to
ensure the perfect quality before delivery. Cooperated with many
overseas clients from over twenty countries, we will be your ideal
OEM/ODM partner.
Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient
supplies and materials.
2. Financially sounded and has the continuous line service from
R&D to designing, manufacturing and marketing.
3. Our products have a wide field of applications including
industry, communication, information, automobiles, computer
peripherals.
4. Competitive price,We devote ourselves in providing products with
market differentiation and high performance.
5. We reduce the impact and damages caused to the environment,
abide international environmental regulations and seek to be green
and eco-friendly.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send
drawings.
For Connectors, please kindly advise series pins, male or female,
molded, field assembly panel mount type and cable length.
4. What's your payment terms?
100 % T/T before delivery
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving
your payment
3. We'll tell you the tracking number once your order has been
sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
