NTC Thermistor Thermal Resistor MF52 NTC-MF52AT 1K 2K 3K 10K 10kohm
50K With 2P Cable
① MF - negative temperature coefficient (NTC) thermistor code.
② 52 - NTC thermistor of epoxy resin encapsulated temperature
sensor.
③ 103 -- the nominal resistance of the thermistor, which means that
the nominal resistance of the thermistor is 10 × 103 (Ω).
④ F -- error (precision) of resistance value: F = ± 1%, g = ± 2%, H
= ± 3%, j = ± 5%
⑤ 3950 -- thermal sensitivity index (material coefficient) b value
of resistance: 395 × 10 (k)
Electrical Characteristics:
|
| Model | Rated resistance(R25) | B value | work temperature | Dissipation coefficient(mW/℃) | Thermal time constant(S) |
Resistance value (KΩ) | Allowable deviation (± %) | Nominal value (K) |
| MF52-102-3435 | 1 | ±1% ±2% ±3% ±5% | 3435 | -40℃ ~ +200℃ | ≥2.0
| ≤15
|
| MF52-202-3435 | 2 | 3435 |
| MF52-2.252-3950 | 2.252 | 3950 |
| MF52-472-3950 | 4.7 | 3950 |
| MF52-502-3470 | 5 | 3470 |
| MF52-502-3950 | 5 | 3950 |
| MF52-682-3950 | 6.8 | 3950 |
| MF52-103-3435 | 10 | 3435 |
| MF52-103-3470 | 10 | 3470 |
| MF52-103-3600 | 10 | 3600 |
| MF52-103-3950 | 10 | 3950 |
| MF52-103-3977 | 10 | 3977 |
| MF52-103-4100 | 10 | 4100 |
| MF52-153-3950 | 15 | 3950 |
| MF52-203-3950 | 20 | 3950 |
| MF52-233-3950 | 23 | 3950 |
| MF52-303-3950 | 30 | 3950 |
| MF52-333-3950 | 33 | 3950 |
| MF52-40.27-3950 | 40.27 | 3950 |
| MF52-473-3950 | 47 | 3950 |
| MF52-503-3950 | 50 | 3950 |
| MF52-503-3990 | 50 | 3990 |
| MF52-503-4050 | 50 | 4050 |
| MF52-104-3950 | 100 | 3950 |
| MF52-104-3990 | 100 | 3990 |
| MF52-104-4200 | 100 | 4050 |
| MF52-204-3950 | 200 | 3950 | | |
| MF52-204-4260 | 200 | 4260 | | |
The resistance table is the RT relation table of NTC thermistor
temperature sensor, which mainly reflects the different resistance
values of NTC at different temperatures. The correct parameters
play a very important role in software development. The standard RT
table generally includes several main parameters: ① nominal
resistance value; ② b value; ③ allowable tolerance resistance value
within ± range
NTC thermistor, in the low temperature range of use, the resistance
value of 10K is the most common, the most widely used and the most
economical
Nominal resistance: 10K K Ω @ 25 ℃; tolerance accuracy: 1%
B value: 3435K@25/50 The accuracy of B value is 1%

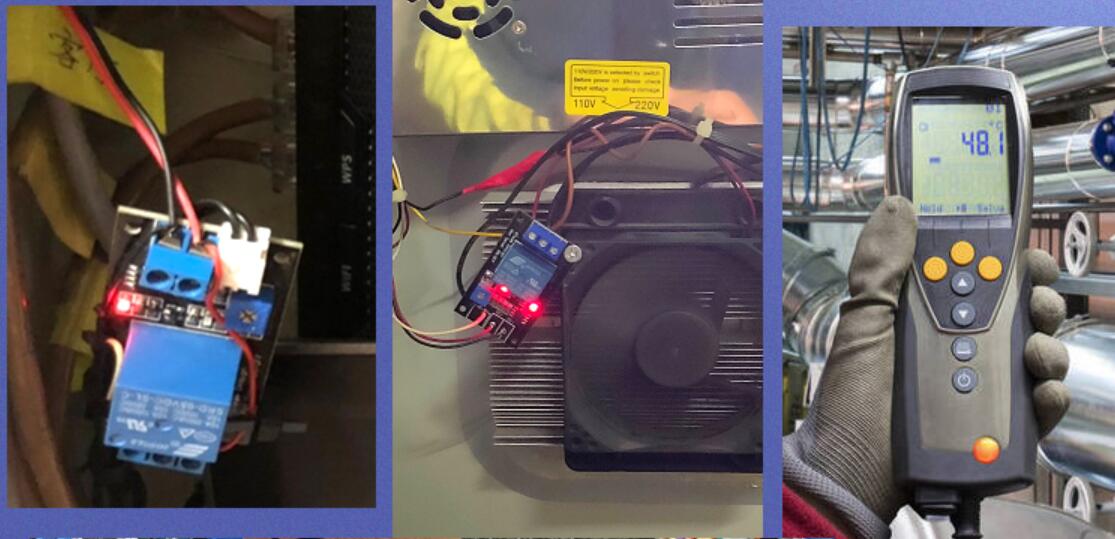

Application:
