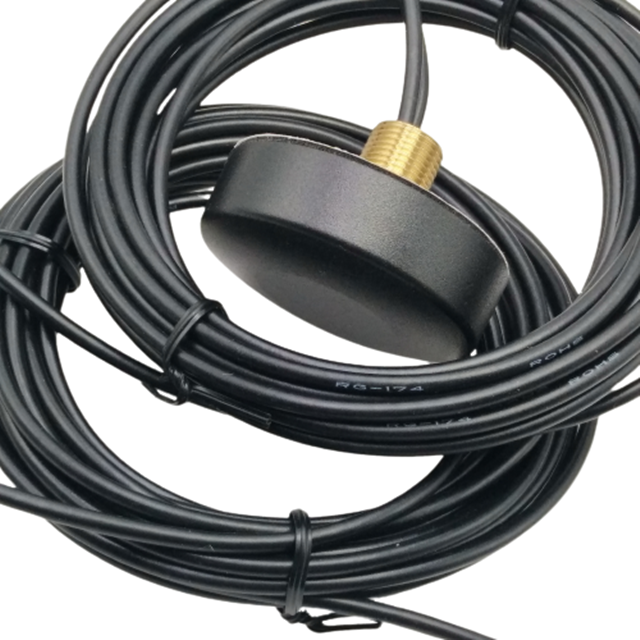

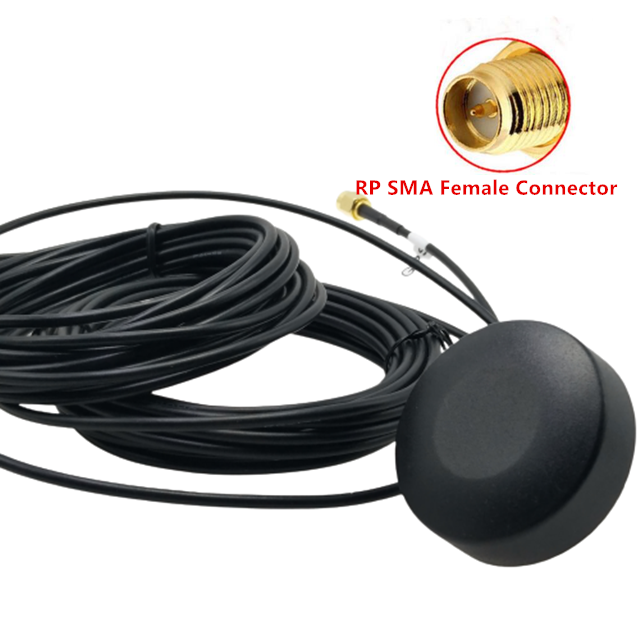

4G&4G 2 in 1 Screw Combined Wall Bracket Mount Mini Puck
Antenna With SMA Connector For Car
Electrical Characteristics:
2*4G LTE Part |
Frequency Range | 698-960/1710-2170/2500-2600MHZ |
Gain | 3dbi |
VSWR | ＜2 |
Input Impedance | 50Ω |
Maximum Power | 60W |
Mechanical |
Size | Φ46 ×15mm |
Cable Type | 1.2.3m..etc |
Connector | SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc. |
Mounting | Screw Mount |
Housing | Black |
Working Temp | -40℃~+85℃ |
Storage Temp | -45℃~+100℃ |
Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis |
Humidity | Humidity95%~100%RH |
Weatherproof | 100%Waterproof |
IP rating | IP67 |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Application:
Our advantages:
1. Nearly 10 years of rich marketing experience and has sufficient
supplies and materials.
2. Financially sounded and has the continuous line service from
R&D to designing, manufacturing and marketing.
3. Our products have a wide field of applications including
industry, communication, information, automobiles, computer
peripherals.
4. Competitive price,We devote ourselves in providing products with
market differentiation and high performance.
5. We reduce the impact and damages caused to the environment,
abide international environmental regulations and seek to be green
and eco-friendly.
Related Products:
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send
drawings.
For Connectors, please kindly advise series pins, male or female,
molded, field assembly panel mount type and cable length.
4. What's your payment terms?
100 % T/T before delivery
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving
your payment
3. We'll tell you the tracking number once your order has been
sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
