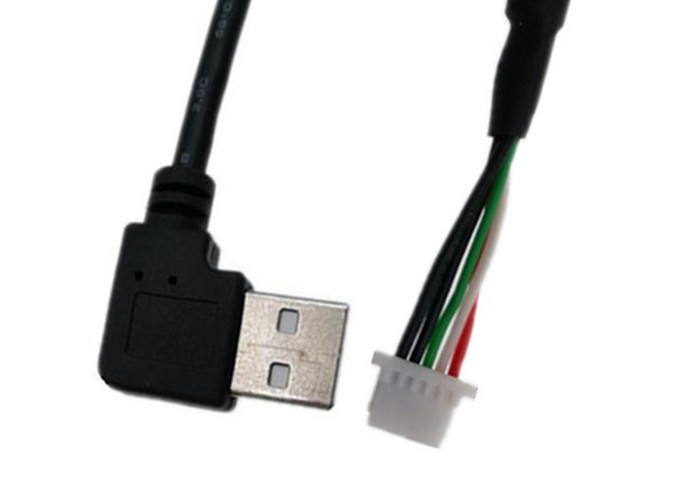

Custom 1.0mm Pitch 5 Pin SH Micro JST Connector To USB A Right
Angle Male Plug Cable
Electrical Characteristics:
| SH Connector |
| Current | 1A AC,DC |
| Voltage rating | 50V AC,DC |
| Temperature range | -40℃~+105℃ |
| Insulation resistance | 100MΩ/Minute |
| Withstanding voltage | 200V AC/Min |
| Wire AWG | 28-32 |
| Contact resistance | 20MΩ/Max |
| Cable Spec | UL2464 2725 24/26/28AWG |
| Cable Length | 6ft, 10ft, 15ft, 25ft, 50ft, 75ft, 100ft (Custom Length available) |
| Color | Black,white,blue |
| Certificate | RoHS,UL,CE,FCC |
| Noted: |
Customer's specification is welcomed.
|
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10
years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
• Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
• Q: Can I get some samples?
A: Yes, sample order is available for quality check and market
test, and it will be freight collect payment.
• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.
• Q: What’s your payment term?
A: We usually accept PAYPAL,T/T as the main payment term, and other
payments can also be negotiated.
• Q: Quality problems?
A: If there is any quality problem or question, we could offer
technical support or return service .
• Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now !!!
Free sample and best answers are waiting for you.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving
your payment
3. We'll tell you the tracking number once your order has been
sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
