    20531 50P Vertical Matching Micro Coaxial Cable mm Right Angle Connector Cableline-Ux Ii 20531-050t-02 0.25

    Ask Lasest Price
    Brand Name : RY
    Model Number : 20531-050T-02 20532-050T-02 2799-0501
    Certification : CE,ROHS
    Price : Most favorable
    Payment Terms : L/C, T/T,Paypal, Western Union,
    Supply Ability : 9999 PCS per day
    Delivery Time : Shipped in 10 days after payment
    • Product Details
    • Company Profile

    20531 50P Vertical Matching Micro Coaxial Cable mm Right Angle Connector Cableline-Ux Ii 20531-050t-02 0.25


    20531 50P Vertical Matching Micro Coaxial Cable mm Right Angle Connector Cableline-Ux Ii 20531-050t-02 0.25

    Mating DirectionVertical
    Contact pitch0.25 mm
    Height1.10 Max (1.04Nom.) ,
    Depth2.40 mm
    Width Formula4.1+(0.25*?p) mm
    Pin count30 34 40 50
    Micro-Coaxial Cable (AWG)#44 #46
    Discrete Cable (AWG)#39 #40 #42 #44 #46
    Current ratingContact Material: Phosphor Bronze (Plug : 20531-0**T-02, Receptacle: 20533-0**E) 0.15A AC/DC [AWG #44] per contact 0.10A AC/DC [AWG #46] per contact Contact Material: Corson Allow (Plug: 20531-0**T-12, Receptacle: 20533-0**E-01) 0.19A AC/DC [AWG #44] per contact 0.14A AC/DC [AWG #46] per contact
    Applicable Standards (Reference Only)USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards
    Mechanical lockNo
    Full shielding (ZenShield®)No

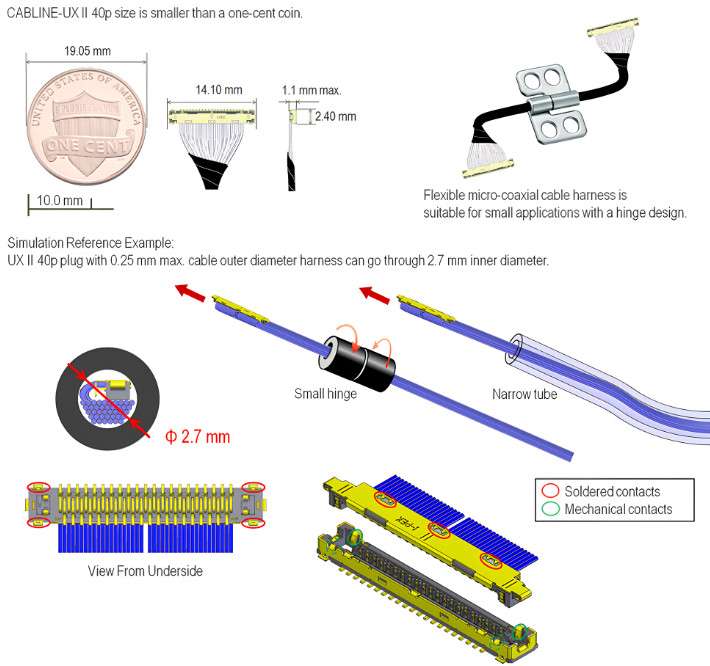

    Product advantages


    Featuring mechanical and signal transmission benefits and advantages of

    Micro-Coaxial Cable Assemblies. These assemblies are capable of handling high data rates,

    while providing high degree of flexibility and high shielding performance.


    20531 50P Vertical Matching Micro Coaxial Cable mm Right Angle Connector Cableline-Ux Ii 20531-050t-02 0.25
