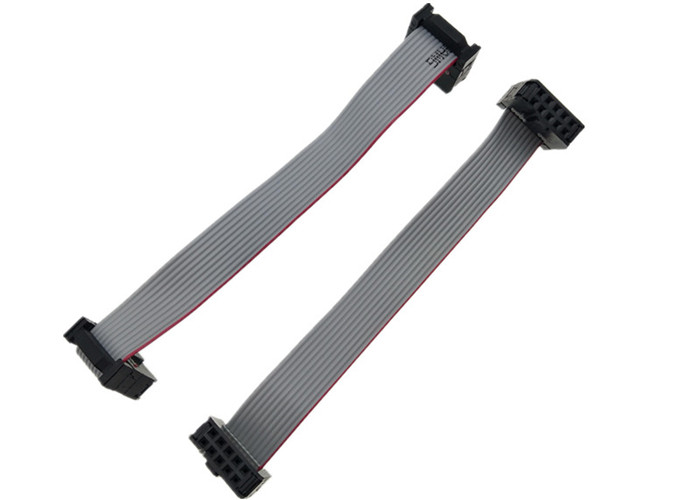

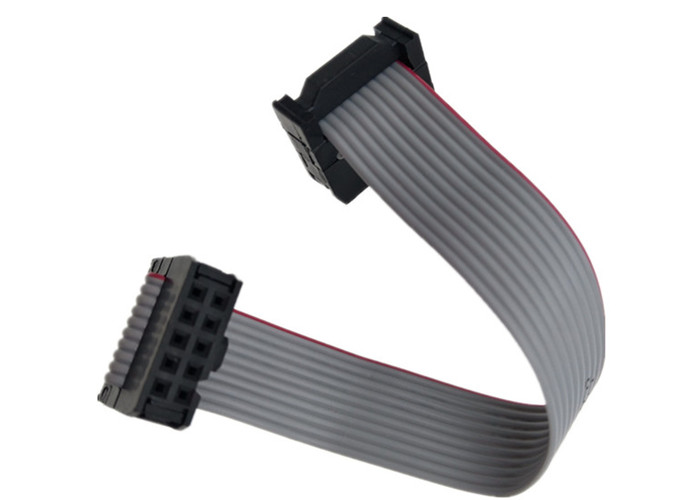

2*5pin IDC 2.54mm Pitch Pinrex Bump With Strain Relief Flat Ribbon
Cable 0.635mm Pitch
Electrical Characteristics:
Name Pitch |
IDC Header connector |
1.27mm/2.0mm/2.54mm |
| Type |
DIP/Angle/SMT |
| Insulator Color |
Black/Gray/Colorized |
| Insulator Flammability |
UL 94V-0 |
| Current Rating |
3A AC |
| Current Resistance(max) |
20m ohm |
| Withstand Voltage(for 1 minute) |
1000V /AC |
| Insulation Resistance(min) |
1000m ohm |
| Contact materials |
Brass |
| Contact Plated |
Tin or gold over nickel |
| Insulator material |
PBT LCP PL6T PL9T |
| Packing |
PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM |
Accepted |
| Name |
IDC Header connector |
| Pitch |
1.27mm/2.0mm/2.54mm |
| Type |
DIP/Angle/SMT |
| Insulator Color |
Black/Gray/Colorized |
| Insulator Flammability |
UL 94V-0 |
| Current Rating |
3A AC |
| Current Resistance(max) |
20m ohm |
| Cable |
UL2651 26-28AWG |
Product Details:
How to buy the IDC Cable?
1. Tell us what pitch of the IDC Connector you want?
Options:1.27,2.0 & 2.54mm
2. Tell us what the Connectors No of pins you need.
3. Tell us if you need the Strain Relief or not.Price is almost
same.
4. Tell us the contact plating you need? Standard is Tin 50μ“ over
Nickle,if you have different requirement, pls tell us.
5. What is the lead time for production? Generally 2weeks for
order.
6. What is the lead time for samples? Generally 3~4days.
7. Could I buy lower than your MOQ request? It depends on the cable
length.
8. Could I make one of cable end to be a male connector like DIP
plug or Box header IDC Type. Yes.
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or
return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with
each other, the samples will be ready for 3-5 days. The samples
will be sent to you via express and arrive in 3-5 days. You can use
your own express account or prepay us if you do not have an
account.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to15 days. Generally
speaking, all of the goods can be reach your address within 4
weeks.
4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
