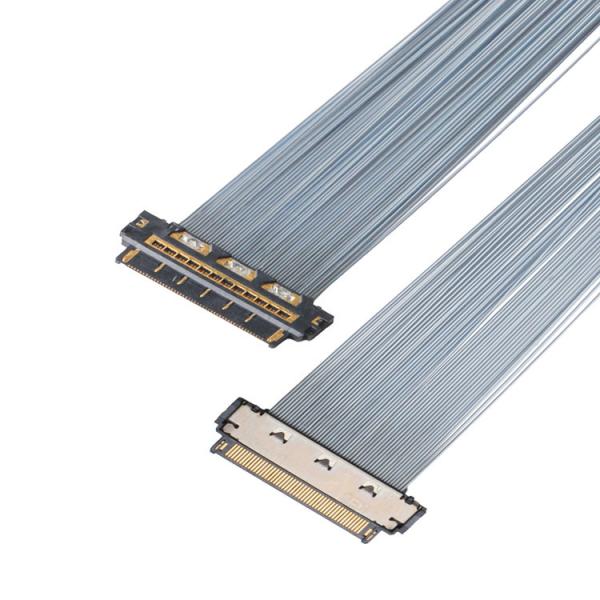

- It is a compact connector with a mounting height of 1.0 mm and a
mating width of 6 mm.
- The cable assembly uses a one-shot soldering method with signal
line pulse heat, achieving a stable and
highly reliable connection.
- A metal shell is used to reduce noise and ensure product
strength.
- Multiple ground terminals are provided to improve the
transmission and the EMS characteristics.
- An effective mating length of 0.51 mm is secured.
Performance:
Performance |
|---|
| Current rating | 0.25 A per contact |
| Contact resistance | 100 mΩ max. |
| Dielectric withstand voltage | 90 V AC for 1 minute |
| Insulation resistance | 50 MΩ min. at 100 V DC |
| Operating temperature | -40℃~+85℃ |
| Compatible cables | AWG#44/46 (Maximum outer diameter: 0.24 mm)
Micro coaxial cable |
Our Company:
RY Electronic Technology Co., Ltd., with ten years of rich
experience, is a company focusing on the design, development and
production of customized cable and connector products. Our product
range covers: FFC/FPC cables, flat flexible ribbon cables, LVDS
cables, custom wiring harnesses, JST wiring harnesses Molex cable
assemblies, circular connectors, ISOBUS connectors, micro coaxial
connectors, etc.
We have been deeply involved in the industry for many years and
have accumulated rich experience and expertise. We are committed to
providing customers with high-quality and reliable customized
solutions. If you need personalized customized cable and connector
products, please contact us, we look forward to providing you with
excellent service and product quality.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or
return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. You'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
