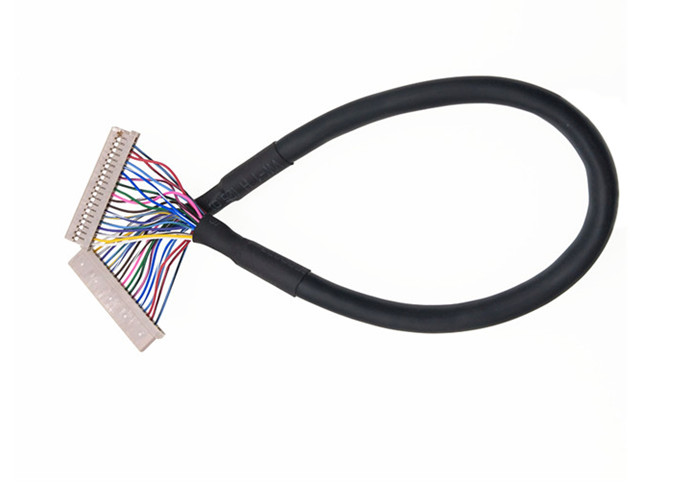

Df14 To Df14 Laptop Coaxia Lvds Cable 20p To 20Pin Hirose For
Remote Controlled Aircraft
-------What's the lvds cable?
Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that
specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can
run at very high speeds using inexpensive twisted-pair copper
cables.
Since LVDS is a physical layer specification only,many data
communication standards and applications use it but then add a data
link layer as defined in the OSI model on top of it.LVDS was
introduced in 1994,and has become popular in products such as
LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet
computers,and communications systems.
The typical applications are high-speed video,graphics,video camera
data transfers,and general purpose computer buses.Early on,the
notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their
application,and the term LVDS has mistakenly become synonymous with
Flat Panel Display Link in
the video-display engineering vocabulary.
Electrical Characteristics
Poles
| 20 |
Current Rating
| 1.0A/AC.DC |
Voltage Rating
| 250V/AC.DC |
Temperature Range
| -25℃ TO 85℃ |
Contact Resistance
| ≤10mΩ |
Insulation Resistance
| ≥500MΩ |
Withstand Voltage
| 500V AC/MINUTE |
Housing Material
| PA66 UL94 V-0 |
Applicable wires
| AWG #32 TO #28 |
Applicable pcb board thickness
| 0.6~1.2 mm |
Certificate
| UL/ROHS/TUV/CQC/NQA |
| Cable Type | LCD 20cores single shield cable, LCD 20cores double shield cable;
LCD 32cores single shield cable, LCD 32cores double shield cable;
LCD 20cores non-shield cable, LCD 32cores non-shield cable; |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Good After-Sales Service: we could offer technical support or
return service in short time.
4. 1 Year Warranty.
FAQ
1. How to choose a right cable?
A designer has to evaluate the determining system parameters such
as signaling rate, cable length, single-ended or differential
(balanced) signaling, point-to-point, multidrop or multipoint
configuration, noise margin, flexibility, costs.
2. What’s will impact the material you select?
Specific equipment, machine structure and environment
3. Why cable need to be shielding?
To reduce electrical noise from affecting the signals, and to
reduce electromagnetic
radiation that may interfere with
other devices.
4. What sort of cable need suggest to?
For long transmission lines, a braided or served shield is
recommended to ensure good isolation between the signal lines and
the environment.
