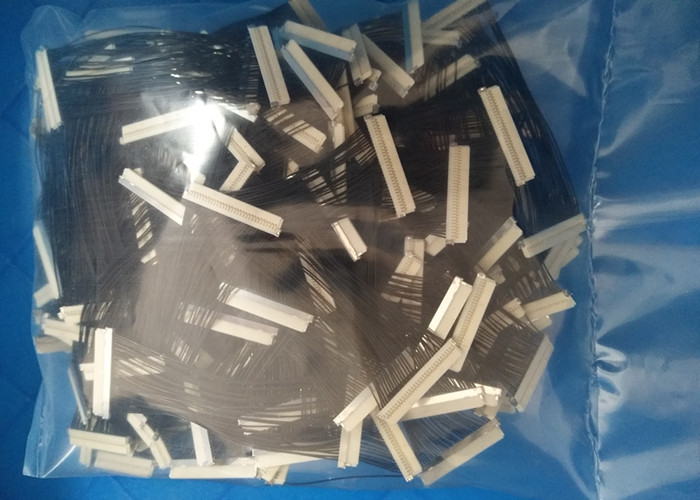

30 Pin DF19G-30S Hirose 1.0mm Pitch To DF19G-30S For TV / DVD Lvds
Cable With 30awg
-------What's the lvds cable?
Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that
specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can
run at very high speeds using inexpensive twisted-pair copper
cables.
Since LVDS is a physical layer specification only,many data
communication standards and applications use it but then add a data
link layer
as defined in the OSI model on top of it.LVDS was introduced in
1994,and has become popular in products such as LCD-TVs, automotive
infotainment systems,
industrial cameras and machine vision,notebook and tablet
computers,and communications systems.The typical applications are
high-speed video,
graphics,video camera data transfers,and general purpose computer
buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their
application,and the term LVDS has mistakenly become synonymous with
Flat Panel Display Link in
the video-display engineering vocabulary.
Electrical Characteristics
| Current rating | 1 AC,DC
|
| Voltage rating | 100V AC,DC
|
| Temperature range | -40℃~+105℃
|
| Contact resistance | 30m Max
|
| lnsulation resistance | 500M Min
|
| Withstanding voltage | 500V AC/minute
|
| Material | Brass
|
| Keywords | WAFER CONNECTOR
|
| Cable | UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type
|
| Cable color |
Optional
|
| Processing ways |
Crimping, pressing and soldering types.
|
| Performance Test |
100% electrical and electricity performance test
|
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or small volumes depending on your
needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or
return service in short time.
5. 1 Year Warranty.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with
each other, the samples will be ready for 3-5 days. The samples
will be sent to you via express and arrive in 3-5 days. You can use
your own express account or prepay us if you do not have an
account.
4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire
harness & cable assembly design. Just let us know your ideas and we
will help to carry out your ideas into perfect products. It does
not matter if you do not have someone to complete files. Tell us
your detalied SPEC. of products, and we will send you finished
drawing for confirmation.
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to15 days. Generally
speaking, all of the goods can be reach your address within 4
weeks.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
