Narrow depth & width with friction lock, USB 3.1 (5 Gbps/lane),

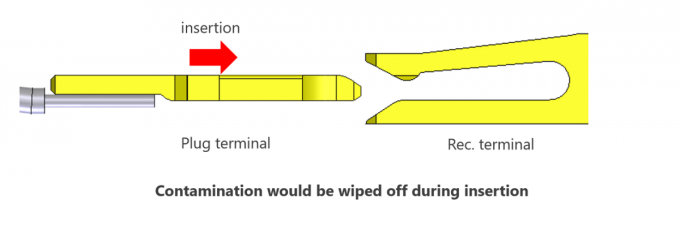

Durable to contamination, 0.4 mm pitch, Horizontal mating type
micro-coaxial connector
| Mating Direction | |
| Contact pitch | |
| Height | |
| Depth | |
| Width Formula | |
| Pin count | |
| Micro-Coaxial Cable (AWG) | |
| Discrete Cable (AWG) | #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 40 contacts 0.24A AC/DC [AWG
#42] per contact/up to 40 contacts 0.3A AC/DC [AWG #40] per
contact/up to 40 contacts 0.8A AC/DC [AWG #36] per contact/up to 12
contacts |

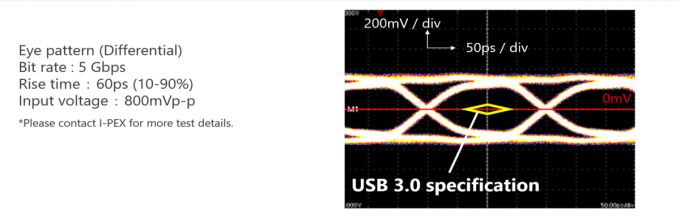

| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi
standards |
| Full shielding (ZenShield®) | |
| Mechanical lock | |

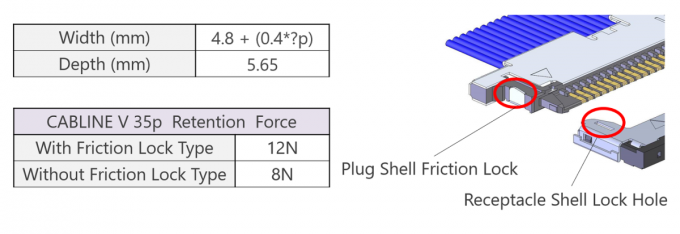

Narrow depth & width with friction lock
Mechanical locking cover prevents incomplete mating and
back-out/un-mating
High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane)
applications
