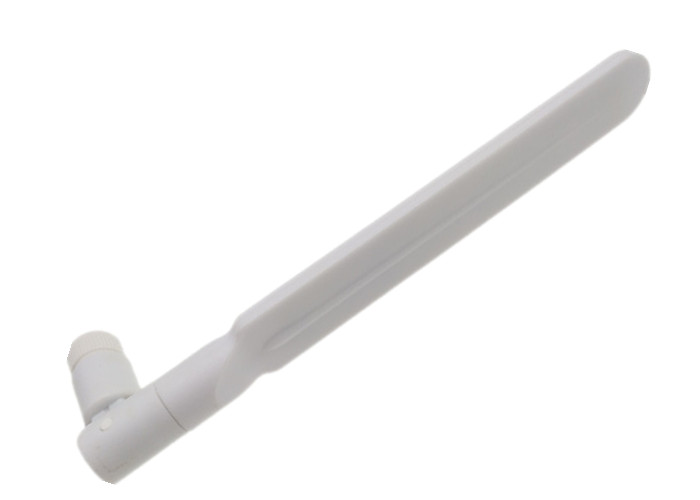

White 4g Lte Modem Mifi Mobile Wifi Router Hotspot Folden Indoor
Antenna
Electrical Characteristics:
| Antenna | Frequency Range
| 698 MHz to 2700 MHz |
Polarization
| Linear |
Gain
| 5 dBi |
V.S.W.R
| < 1.5 |
Impedance
| 50Ω |
Dimension
| 172 (mm) |
| Mechanical | Cable
| No cable |
Connector
| FAKRA/SMA or others |
Radome Material
| ABS |
Mounting Method
| Screw |
| Environmental | Operating Temperature
| Below 40℃ to 85℃ |
Relative Humidity
| Up to 95% |
Vibration
| 10 Hz to 55 Hz with 1.5 mm Amplitude 2 Hours |
Environmentally Friendly
| ROHS Compliant |
Product Details:
Suggestions:
1. We supply different types of 4G antenna. They can be mounted
with magnet, screw or adhesive. You can select the proper type
according to antenna’s mounting position.
2. We can offer customization according to your individual
requirements about antenna.
3. The omni-directional antenna for 4G cellular can not be covered
by metal plate when working in case signals received are
interfered.
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
Application:
1. The antenna radiates and receives radio waves. However, it is
not radio waves that the transmitter sends to the antenna through
the feeder. The receiving antenna can not send radio waves directly
through the feeder to the receiver, which must go through the
energy conversion process. Next, we take the radio communication
equipment as an example to analyze the signal transmission process,
and then explain the energy conversion function of the antenna.
2. At the transmitter end, the modulated high frequency oscillating
current (energy) generated by the transmitter is fed into the
transmitting antenna by the feeding device (the feeding device can
transmit current wave or electromagnetic wave directly depending on
the frequency and form). The transmitting antenna converts the high
frequency current or guided wave (energy) into radio wave-free
electromagnetic wave (energy) to the circumference. Circumferential
radiation (see Figure 1); at the receiving end, radio waves
(energy) are converted into high-frequency current or guided waves
(energy) through the receiving antenna and transmitted to the
receiver via the feeding device. From the above process, it can be
seen that the antenna is not only a device for radiating and
receiving radio waves, but also an energy converter and an
interface device between circuit and space.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with
each other, the samples will be ready for 3-5 days. The samples
will be sent to you via express and arrive in 3-5 days. You can use
your own express account or prepay us if you do not have an
account.
4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to15 days. Generally
speaking, all of the goods can be reach your address within 4
weeks.
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
