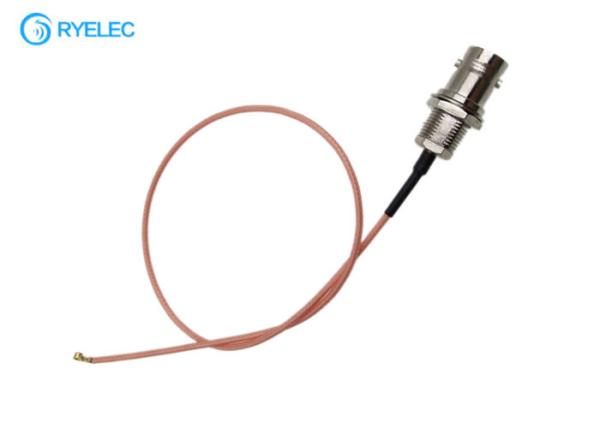

180 Degree Female Crimp Type Rear Mount Bnc To Ufl Female With
Rg178 Jumper Rf Cable
RF coaxial cable assembly (7/16
DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following
connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA,
SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies
can be made with the following 75 ohms connectors such as BNC, F,
N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/
RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector
types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found
here, you can create your own RF cable assembly configuration by
calling our sales department
Electrical Characteristics
| connector 1 | Bnc female |
| Connector 2 | Ufl |
| Gain | DC-6GHz/DC-3GHz |
| Cable type | RF1.13/RF1.37/RG316/RG174 or customized |
| Cable length | 15CM/20CM or customized |
| Max Input Power | 50 w |
| Impedance | 50ohm |
| Temperature Range | -65℃-165℃ |
| Certificate | ISO9001
|
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or
return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
FAQ:
1 Q: What is you brand ?
A: RY
2 Q: Some connectors are available with different cables. Which
cables shall I choose?
A: In a nutshell, if there are different cables which can be
equipped with the same connector: always choose the cable with the
bigger diameter (simply because the bigger diameter results in less
attenuation).
3 Q: Can you provide customization?
A: Of course. Personalized designs of RF cable assembly products
according to customer's requirements are welcomed.
4 Q: How much the shipping cost will be for sample ?
A: That depends on the specific weight and packing size of the
goods.
5 Q: How can I get the cable price list ?
A: Please contact us with detail inquiry information, so we can
offer the latest price for you.
6 Q: What's your MOQ?
A: In generally, we will ask at least 100pcs for the RF cable
assembly, which we can make further negotiation.
7 Q: What's the delivery time?
A: Generally, we can deliver the cables in 3-5 working days once
the payment is confirmed. Mass production is another matter.
8 Q: How do you solve after sale service?
A: After the receipt of goods, if you are not satisfied or any
other problems , please contact us to communicate as soon as
possible, we will give you a quickly and reasonable solution
.Thanks a lot!
