20 Pin Connector JAE FI - S20S LVDS Cable Assembly LED LCD Display Mount

Ask Lasest Price
Brand Name :	RY
Model Number :	RY-20492
Certification :	CE,ROHS
Price :	USD0.88~6.88
Payment Terms :	L/C, T/T,Paypal, Western Union,
Supply Ability :	10000pcs
Delivery Time :	Shipped in 3 days after payment

Add to Cart

Product Details
Company Profile

20 Pin Connector JAE FI - S20S LVDS Cable Assembly LED LCD Display Mount

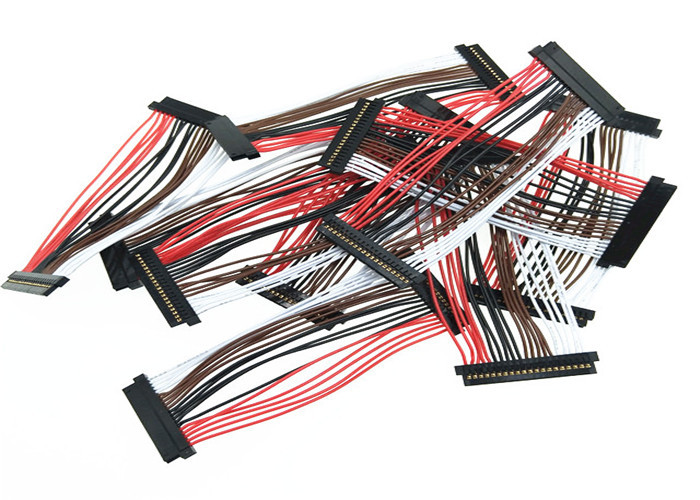

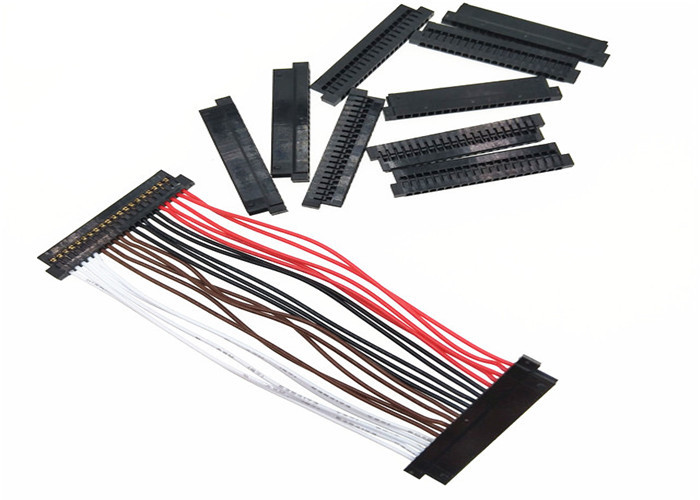

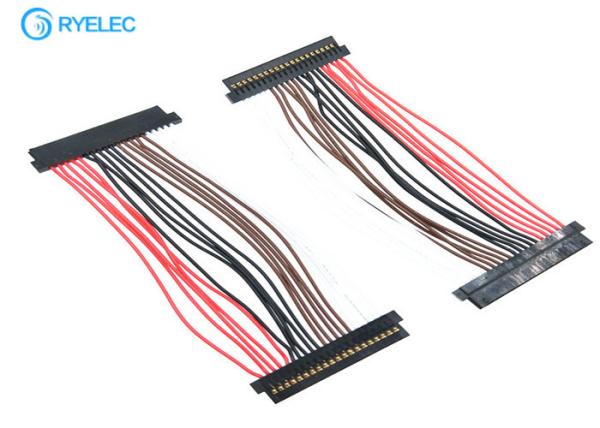

20 Pin Connector JAE FI-S20S LED LCD Display Mount 1.25mm Pitch Wire Harness

-------What's the lvds cable?

Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.

Electrical Characteristics

Cable type	32AWG,30AWG, 28AWG, 26AWG; LCD 20cores single shield cable, LCD 20cores double shield cable; LCD 32cores single shield cable, LCD 32cores double shield cable;
Cable color	Black/Grey
Connectors	JAE
Cable Length	50mm-15000mm.
Processing ways	Crimping, pressing and soldering types.
Pin out connection	As per customer’s request(customer can send the datasheets of LCD and main board to us).
Connector pitch range	0.3mm-4.2mm
characteristics	Good transferring, clearly pictures, no shaking, and transfer issues
Advantages	Manufacturing factory; Competitive price and quality; Short lead time.
Applications	LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA Camera/LCM/Notebook/tablet PC/ HDD
ISO certificate	ISO9001:2008
Service	OEM/ODM products are acceptable.
More information	ISO/RoHS/UL
Performance Test:	100% electrical and electricity performance test

Product Details:

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

FAQ:

1. How to choose a right cable?

a designer has to evaluate the determining system parameters such as signaling rate, cable length, single-ended or differential (balanced) signaling, point-to-point, multidrop or multipoint configuration, noise margin, flexibility, costs.

2. What’s will impact the material you select?

Specific equipment, machine structure and environment

3. Follow question 2, below you have to concern

Unshielded or shielded (taped, braided, or combination of both)?

Round or flat? Coaxial, multiconductor or twisted pair cable?

4. Why cable need to be shielding?

To reduce electrical noise from affecting the signals, and to reduce electromagnetic

radiation that may interfere with

other devices.

5. What sort of cable need suggest to?

For long transmission lines, a braided or served shield is recommended to ensure good isolation between the signal lines and the environment.

6. Is that double-shielded cables that are both taped and braided typically perform better?

Yes

7. What kind of cable is cheaper and easy to handle?

Multiconductor cables are cheaper and easier to handle than twisted pair or coaxial cables, especially in terms of termination.

8. What’s you recommended for differential data transmission, such as LVDS?

The twisted pair cable is recommended since it provides two identical conductors to transmit the signal and its complement.
