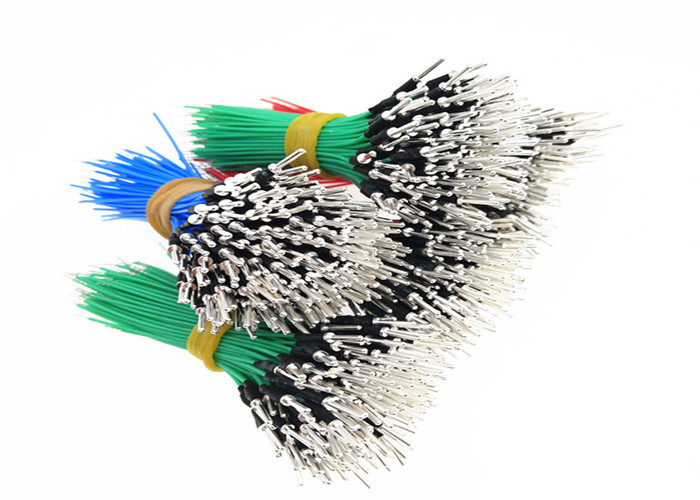

Af250 7/0.12mm Spc Ptfe 300v 200℃ Od:0.6mm With Tinned And Required
Terminal Soldered
Electrical Characteristics
| AF250 PTFE WIRE |
Conductor
| Insulation | Electrical Properties |
Sectional Area mm² | Conductor Construction NO.XΦmm | Diameter mm | Insulation Thickness mm | Outer Diameter mm | Max Conductor Resistance DC20℃Ω/km |
0.050
| 7*0.1 | 0.300 | 0.20 | 0.70 | 376.20 |
0.200
| 7*0.20 | 0.600 | 0.30 | 1.20 | 83.50 |
0.350
| 19*0.16 | 0.800 | 0.30 | 1.40 | 49.50 |
0.500
| 19*0.18 | 0.900 | 0.35 | 1.60 | 36.00 |
0.750
| 19*0.23 | 1.150 | 0.35 | 1.85 | 22.70 |
1.000
| 19*0.26 | 1.300 | 0.35 | 2.00 | 19.00 |
1.200
| 19*0.28 | 1.400 | 0.35 | 2.10 | 15.30 |
1.500
| 19*0.32 | 1.600 | 0.40 | 2.40 | 11.70 |
2.000
| 19*0.37 | 1.850 | 0.40 | 2.65 | 9.45 |
2.500
| 19*0.41 | 2.050 | 0.50 | 3.05 | 6.86 |
4
| 37*0.37 | 2.600 | 0.50 | 3.60 | 4.51 |
6
| 37*0.45 | 3.150 | 0.50 | 4.15 | 3.05 |
10
| 133*0.32 | 4.800 | 0.50 | 5.80 | 1.68 |
16
| 133*0.39 | 5.800 | 0.60 | 7.00 | 1.13 |
20
| 133/0.45 | 6.800 | 0.60 | 8.00 | 0.89 |
25
| 196/0.4 | 7.600 | 0.60 | 8.80 | 0.73 |
35
| 494/0.3 | 9.000 | 0.70 | 10.40 | 0.51 |
50
| 551/0.4 | 10.600 | 0.80 | 12.20 | 0.36 |
70
| 551/0.4 | 12.6 | 1 | 14.6 | 0.27 |
95
| 760/0.4 | 14.8 | 1.2 | 17.2 | 0.21 |
Wire Harness Applications:
1. Wire Harness for LCD
2. Wire Harness for Advertising machine
3. Wire Harness for Monitoring
4. Wire Harness for Back projection
5. Wire Harness for Medical system/monitoring
6. Wire Harness for Laptop
7. Wire Harness for PC and Computer
8. Wire Harness for PDA
9. Wire Harness for DVD
10. Wire Harness for Digital camera
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom
cable assemblies and antennas in large or small volumes depending
on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our services
1.Reply your enquiry in shortest time.
2.Stick to high quality Wire Harness.
3.OEM & ODM orders are welcomed.
PS: If you havn't find the exact item Wire Hanresses meeting your
needs,please do not rush to go away,send your item specifications
to us so we can give you our best quote.We can develop moulds and
supply satisfatory quality to you.
Thanks for your attention!
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire
harness & cable assembly design. Just let us know your ideas and we
will help to carry out your ideas into perfect products. It does
not matter if you do not have someone to complete files. Tell us
your detalied SPEC. of products, and we will send you finished
drawing for confirmation.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to15 days. Generally
speaking, all of the goods can be reach your address within 4
weeks.
