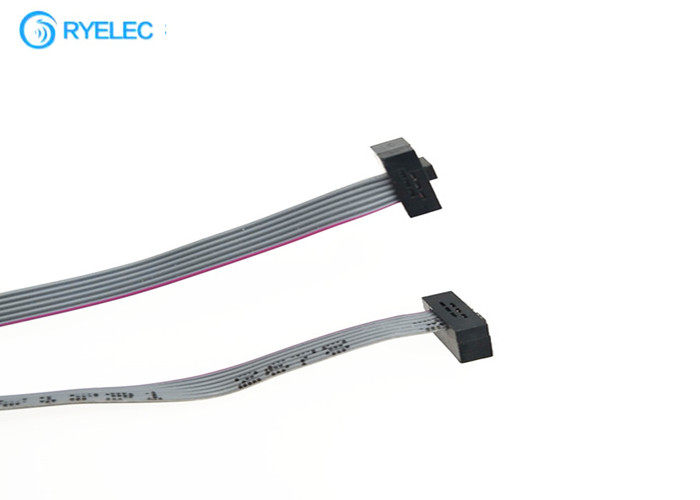

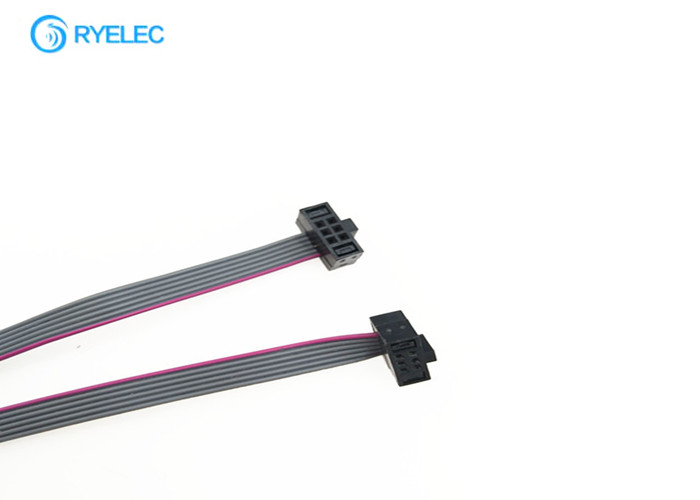

1.27mm Connection For Ratchet 100mm FC/IDC Socket 6pin Female Flat
Gray Ribbon Cable
Electrical Characteristics
| Specifications |
Connector Pitch | 1.27,2.0,2.54mm |
| Poles | 6~64 |
| Matched Flat Cable pitch | 1.27mm IDC Socket =>0.635mm UL2678# 30(7*0.1) Flat Grey Cable |
| 2.0mm IDC Socket =>1.0mm UL2651# 28(7*0.12) Flat Grey Cable |
| 2.54mm IDC Socket =>1.27mm UL2651# 28(7*0.12) Flat Grey Cable |
| Current Rating | 1AMP |
| Connector | Traditional IDC or Molex equivalent
|
Application of 2468 flat ribbon cable:
1. Display / Notebook PC & Tablet PC / Flat panel display
2. Smart phone / Cell Phone
3. Flat screen TV / Professional TV
4. Printer / Scanner / FAX machine / Copier
5. Sound Box / Acoustics
6. MP3, MP4
7. CD/ DVD
8. Digital camera
9. Robot / Industrial / Projector / Handy terminal / Amusement
10. Car electronics
11. Toy for children
12. AV equipment / Medical equipment / Digital measurement
instrument
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or
return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
How to buy the IDC Cable?
1. Tell us what pitch of the IDC Connector you want?
Options:1.27,2.0 & 54mm
2. Tell us what the Connectors No of pins you need.
3. Tell us if you need the Strain Relief or not.Price for with SR
or without SR is almost same.
4. Tell us the contact plating you need? Standard is Tin 50μ“ over
Nickle,if you have different requirement, pls tell us.
5. What is the lead time for production? Generally 2weeks for
order.
6. What is the lead time for samples? Generally 3~4days.
7. Could I buy lower than your MOQ request? Yes, it depends on the
cable length and number of pins.
8. Could I make one of cable end to be a male connector like DIP
plug or Box header IDC Type or Pitch 2.5mm Wafer housing connector?
Yes.
