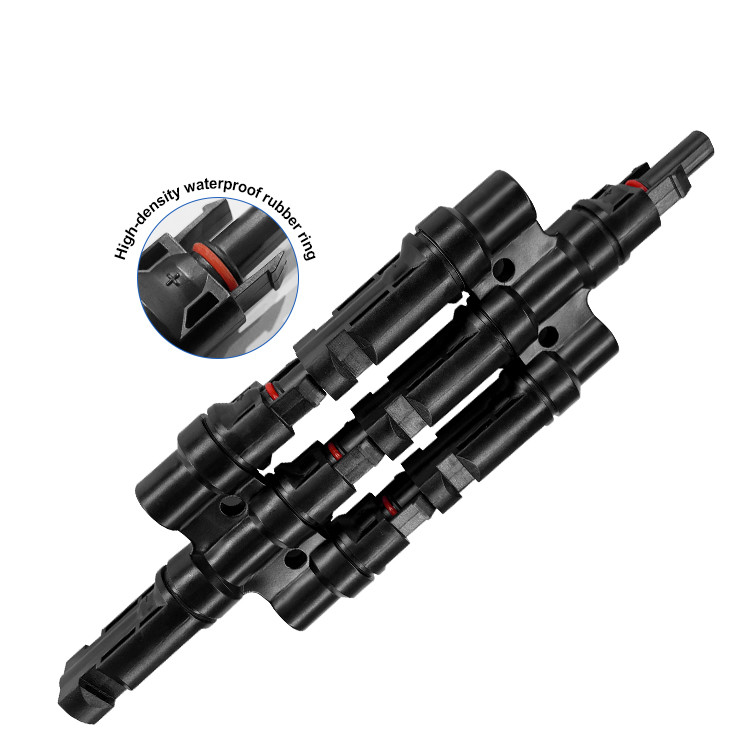

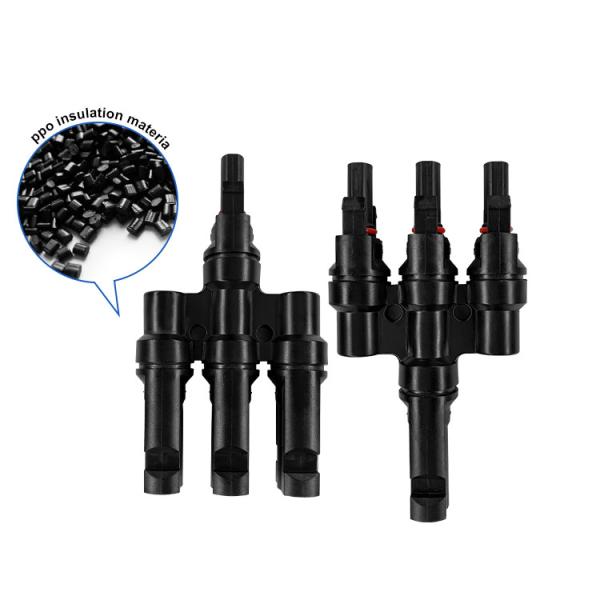

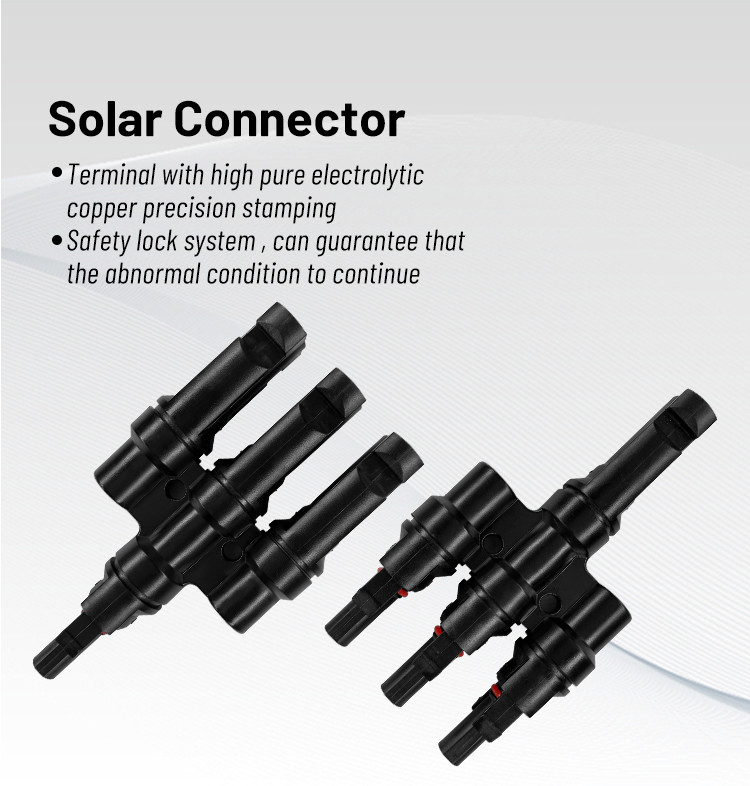

Photovoltaic Connector 1 To 3/4/5 Branch Solar Connector Solar
Panel Connector
| Rated Current | 22A(2.5mm2),30A(4mm2,6mm2) |
| Withstanding Voltage | 1000V DC(TUV),600V(UL) |
| Contact Resistance | ≤5mΩ |
| Dia. of pin or socket | 4mm |
| Protection Class | Class II |
| Temperature Range | -40° C ~ +85°C |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Un mating Force | 200 Newton |
| Insulation Material | PC/PA |
| Contact Material | Copper,silver plated |
| Flame Class | UL94-V0 or UL94-5VA |
| Locking system | Snap in |
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
3. Quality is important for us and for the customer, the client’s
demand is more supreme. We create an easier, less costly and
extremely satisfactory way of business. Striving to achieve
improving results through our continuous innovating and technical
engineer’s effort, we create values to turn the antenna / Cable /
Harness to your exact demand.
4. We guarantee every antenna / Cable / Harness we offered must be
tested by network analyzer / Precision Low Voltage Wire Tester to
ensure the perfect quality before delivery. Cooperated with many
overseas clients from over twenty countries, we will be your ideal
OEM/ODM partner.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send
drawings.
For Connectors, please kindly advise series pins, male or female,
molded, field assembly panel mount type and cable length.
4. What's your payment terms?
100 % T/T before delivery
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving
your payment
3. We'll tell you the tracking number once your order has been
sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
If you want to get more product information and offers, please
contact us
