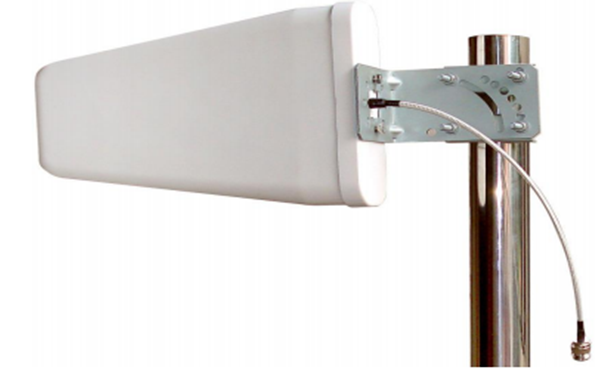

Penta Band LPDA Antenna 4g Lte Outdoor Directional Log Periodic
10dbi High Gain Antenna
Antenna installation For outdoor antennas, lightning protection
equipment needs to be added between the antenna and the wireless
AP; for directional antennas, pay attention to the direction that
the front of the antenna faces the remote site; the antenna should
be installed as high as possible, between the antenna and the site
as much as possible Meet the visual distance (visible to the naked
eye, avoid obstacles in the middle).
Electrical Characteristics:
Key Specification |
Key Specification | RY-TDJ-0825DSAN10 |
Frequency-MHz | 800-2500 |
Vertical Beamwidth -º | 60/55 |
Horizontal Beamwidth -º | 90/70 |
F/B Ratio -dB | ≥18 |
Gain-dBi | 10 |
VSWR | ≤2 |
impedance -Ω | 50 |
Intermodulation -dBm | ≤-135dBc(2×10W) |
Polarization mode | vertical |
Power-W | 50 |
Connector | SMA |
Size-mm | 293x210x65 |
weight-kg | 0.8 |
Support rod diameter -mm | Ф40-Ф50 |
1PCS Carton Size | 45*22*8cm |
Product Details:
☀ We focus on coaxial connectors / cable / antenna.
☀ Our custom RF cable connectors are built-in and shipped
worldwide.
☀ RF cable connectors in 50 ohms can be the following types such as
EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP,
SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with
the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC
and mini SMB .
☀ RF cable connectors can be connected on the coaxial cable
includes: RG141/RG142/RG174/ RG178/RG179/RG180/
RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2
/ 7/8 / LMR195/ LMR240/LMR400,ect
☀ RF cable connectors can be produced to cable assemblies with many
different cable types and custom lengths depending on your needs
and applications.
☀ If you require a special RF cable assembly configuration not
found here, you can create your own RF cable assembly configuration
by calling our sales department.
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10
years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps
developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we
have a strong quality control team
5. What's the warranty?
One year, 12 months.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving
your payment
3. We'll tell you the tracking number once your order has been
sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
