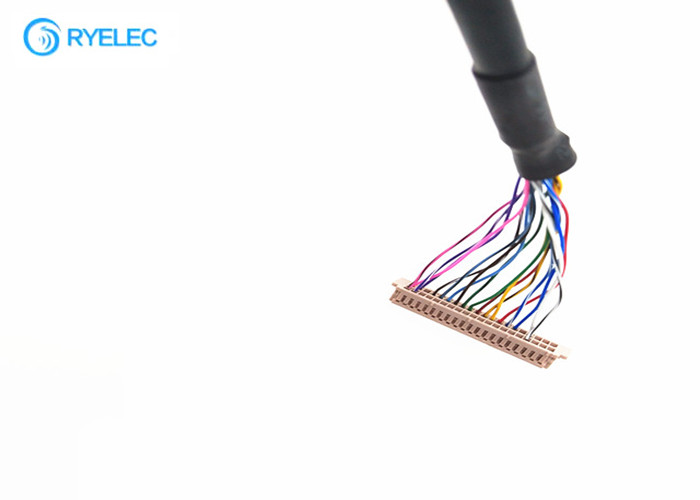

Hirose 40pin DF13 Connector To JAE Hirose FI-S20S 1.25mm Connector
For LVDS Cable
Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that
specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can
run at very high speeds using inexpensive twisted-pair copper
cables.
Since LVDS is a physical layer specification only,many data
communication standards and applications use it but then add a data
link layer as defined in the OSI model on top of it.LVDS was
introduced in 1994,and has become popular in products such as
LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet
computers,and communications systems.
The typical applications are high-speed video,graphics,video camera
data transfers,and general purpose computer buses.Early on,the
notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their
application,and the term LVDS has mistakenly become synonymous with
Flat Panel Display Link in
the video-display engineering vocabulary.
Electrical Characteristics
Current rating
| 1A AC,DC |
Voltage rating
| 150V AC,DC |
Temperature range
| -40℃~+105℃ |
Contact resistance
| 30m Max |
lnsulation resistance
| 500M Min |
Withstanding voltage
| 500V AC/minute |
Color
| Black |
Pitch
| 1.25mm(.049) |
Product Keywords
| FI-S20S |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. 1 Year Warranty.
FAQ
1. How to choose a right cable?
A designer has to evaluate the determining system parameters such
as signaling rate, cable length, single-ended or differential
(balanced) signaling, point-to-point, multidrop or multipoint
configuration, noise margin, flexibility, costs.
2. What’s will impact the material you select?
Specific equipment, machine structure and environment
3. What sort of cable need suggest to?
For long transmission lines, a braided or served shield is
recommended to ensure good isolation between the signal lines and
the environment.
4. What kind of cable is cheaper and easy to handle?
Multiconductor cables are cheaper and easier to handle than twisted
pair or coaxial cables, especially in terms of termination.
5. What’s you recommended for differential data transmission, such
as LVDS?
The twisted pair cable is recommended since it provides two
identical conductors to transmit the signal and its complement.
