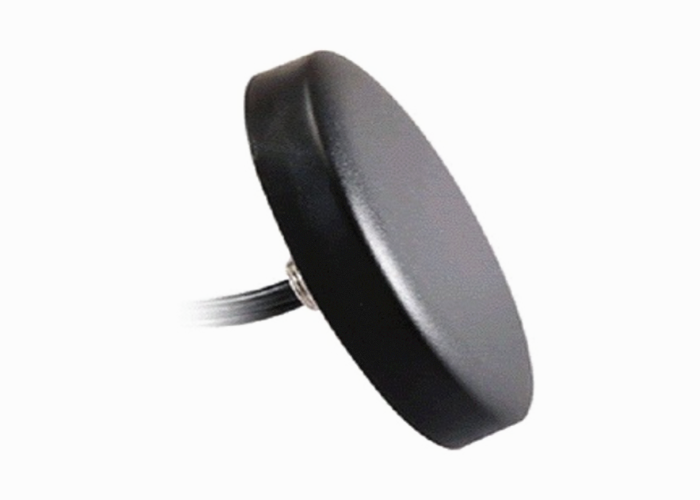

External 3g 4g lte Multi Bands Puck 2 port diversity panel hole
Mount Antenna
Electrical Characteristic:
( I ) Product Overview
|
Dielectric Antenna
| |
Center Frequency(MHz):
| 3g 4g |
VSWR:
| 1.5:1 |
Bandwidth(MHz):
| ±5 |
Impedance(Ω):
| 50 |
Max Input power(W):
| 60 |
Polarization:
| Vertical/Horizontal |
Antenna Size(mm):
| 80 mm(D)×13mm(H) |
Cable Length(mm):
| 2,3,5 etc |
Cable Type:
| 2*RG174 |
Connector:
| 2*SMA/N etc |
Mounting :
| Screw(Hole/Roof) |
Housing :
| Black |
Material:
| ABS |
Working Temp:
| -45℃~+75℃ |
Storage Temp:
| -45℃~+75℃ |
Product Details:
Download Drawing Here:
RY-LTE-09M.pdf
