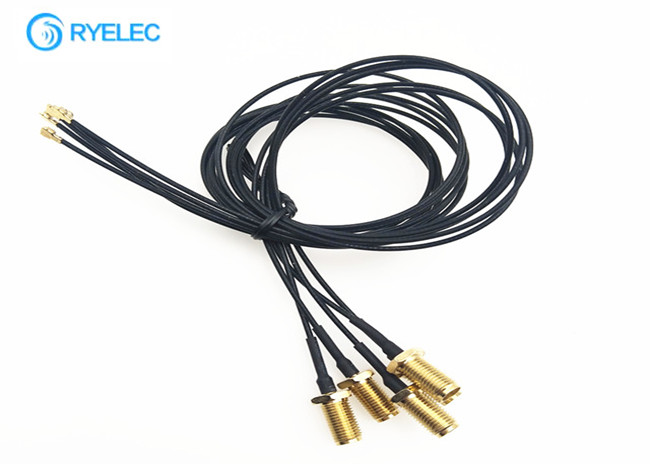

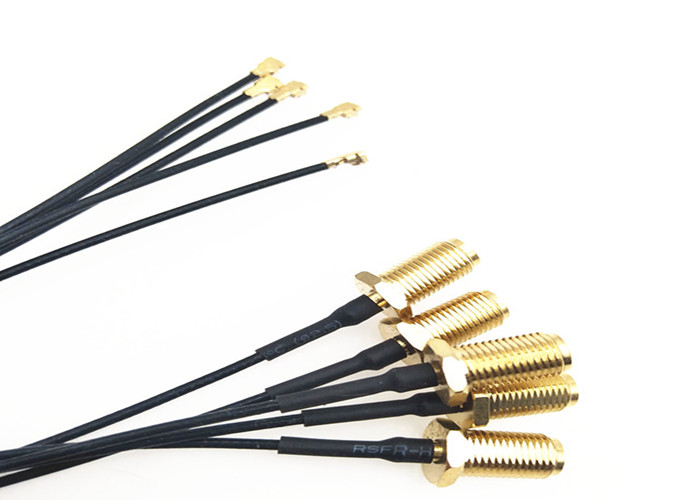

extension SMA female bulkhead to 1.37 mm cable Ufl./IPX RF
connector pigtail cable
Electrical Characteristics
| ELECTRICAL DATA |
| Impedance | 50Ω |
| Frequency range | DC-6Ghz |
| VSWR | 1.3 max |
| Voltage | 60V AC(rms) |
| Insulation Resisitance | 500 MΩ min. |
| Insertion Loss | 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ |
| Connector | sma to mcx |
| MATERIAL DATA |
| Bodies | Brass--gold plating |
| Pin contacts | Brass--gold plating |
| Socket contacts | Copper-beryllium alloy--Au plating |
| Insulator | PTFE |
| Cable type | 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240 |
| Application | smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc |
| Temperature range | -40°C to +80°C |
Product Details:

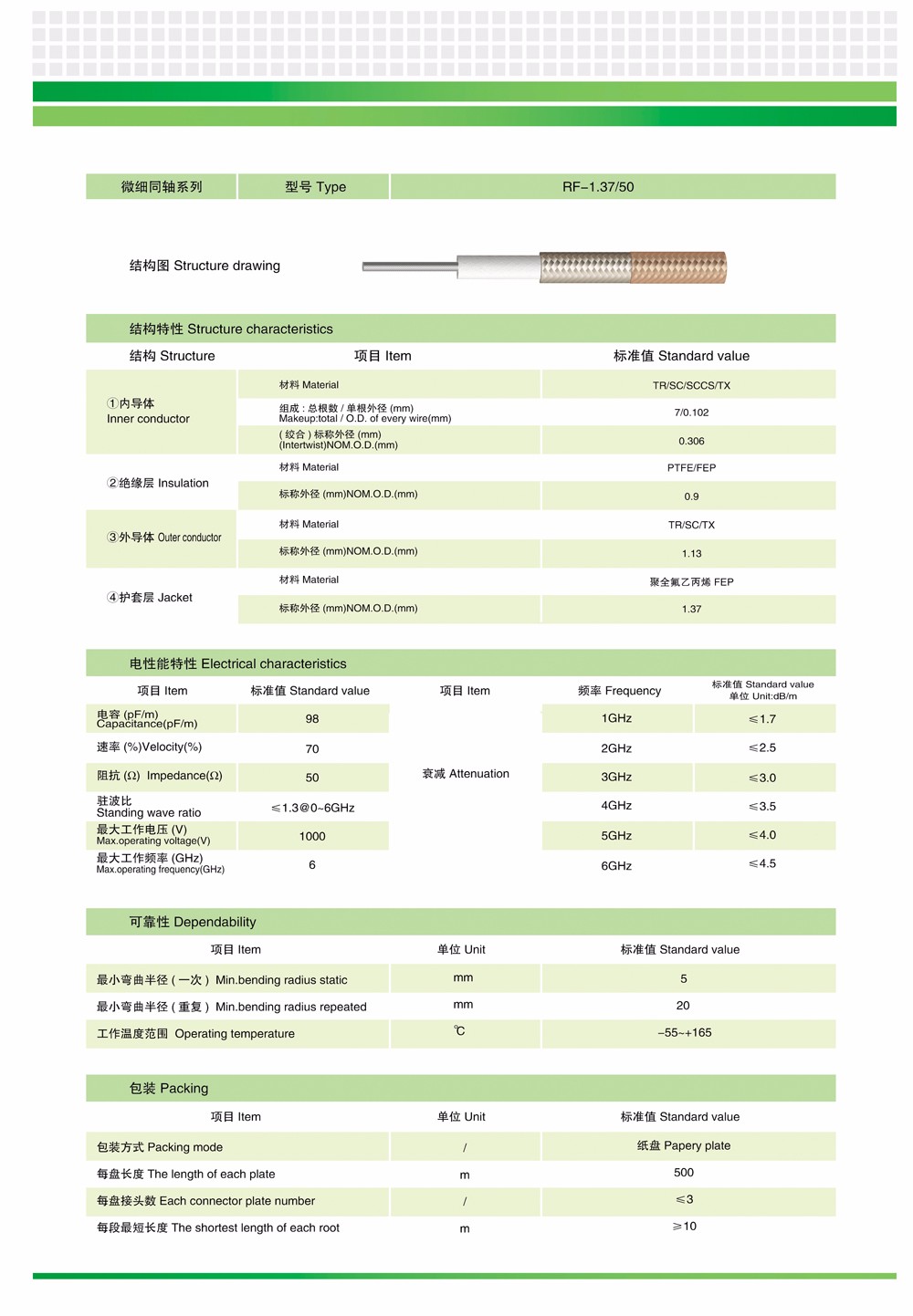

Spec:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. No minimum order requirement
2. Design according to customer requirement
3. Reliable technical support
4. Quick response and delivery
FAQ:
1. Some connectors are available with different cables. Which cables
shall I choose?
In a nutshell, if there are different cables which can be equipped
with the same connector: always choose the cable with the bigger
diameter (simply because the bigger diameter results in less
attenuation).
2. Can you provide customization?
Of course. Personalized designs of RF cable assembly products
according to customer's requirements are welcomed.
3. Can you send a sample for us to develop?
Yes, normally we can provide 1 or 2 samples of the small RF cable
assembly ,buyers need to bear the freight.
4. How much the shipping cost will be for sample ?
That depends on the specific weight and packing size of the goods.
5. How can I get the cable price list ?
Please contact us with detail inquiry information, so we can offer
the latest price for you.
6. What's your MOQ?
In generally, we will ask at least 100pcs for the RF cable
assembly, which we can make further negotiation.
7. What's the delivery time?
Generally, we can deliver the cables in 3-5 working days once the
payment is confirmed. Mass production is another matter.
8. How do you solve after sale service?
After the receipt of goods, if you are not satisfied or any other
problems , please contact us to communicate as soon as possible, we
will give you a quickly and reasonable solution .
