GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount

Zhangjiagang RY Electronic CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount from wholesalers

    Buy cheap GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount from wholesalers
    • Buy cheap GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount from wholesalers
    • Buy cheap GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount from wholesalers
    • Buy cheap GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount from wholesalers
    • Buy cheap GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount from wholesalers
    • Buy cheap GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount from wholesalers

    GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount

    Ask Lasest Price
    Brand Name : RY
    Model Number : RY-135747
    Certification : CE,ROHS
    Price : USD0.88~5.88
    Payment Terms : L/C, T/T,Paypal, Western Union,
    Supply Ability : 10000pcs
    Delivery Time : Shipped in 3 days after payment
    • Product Details
    • Company Profile

    GSM 3G 4g Lte Car Waterproof Roof Mount Rubber Antenna Outdoor Use Screw Mount


    outdoor use screw mount GSM 3G 4g lte car waterproof roof mount rubber antenna


    key specification:


    4G/LTE antenna Specification


    Frequency Range

    698-960/1710-2700MHz


    V.S.W.R

    2.5:1


    Gain

    6dBi


    Polarization

    Vertical


    Radiation

    Omni directional


    Max Input power(W)

    50


    Impedance

    50 ohm


    Max wind speed

    200km/h


    Mechanical Specifications

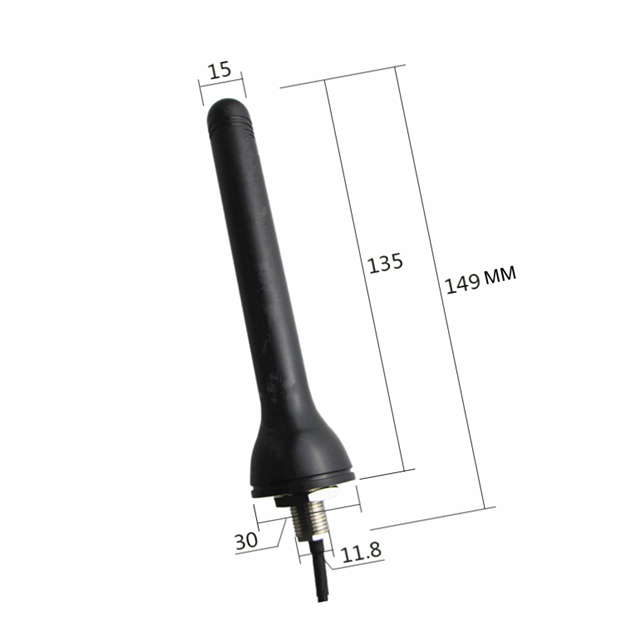

    Size

    149mm


    Cable

    3m RG174, RG58, RG316, LMR100 or others


    Connector

    SMA straight male, SMB, FME, FAKRA or others


    Mounting

    Screw mount(M12)


    Housing

    Black ABS


    Environmental Specification


    Working Temp

    -40℃~+85℃


    Vibration

    Sine sweep 1g(0-p), 10~50~10Hz each axis


    Humidity

    95%~100%RH


    Waterproof

    100% waterproof

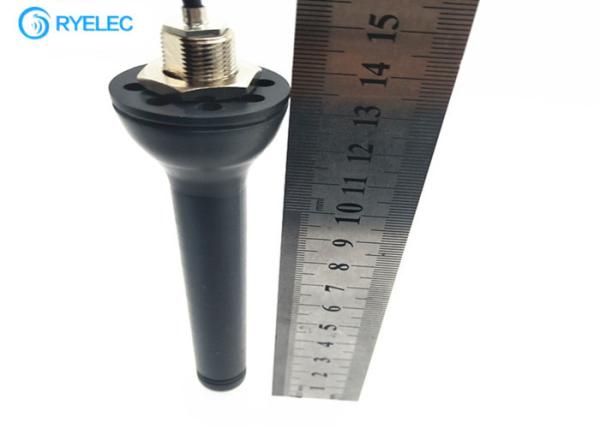

    Product shows:

    Our Company:


    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


    Our advantages:


    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
    3. Fast Delivery Time :2~15 days, On-Time Delivery.
    4. Good After-Sales Service: we could offer technical support or return service in short time.
    5. 1 Year Warranty.
    6. OEM/ODM service.
    7. We are available with Trade Assurance, you'll enjoy:
    •100% product quality protection
    •100% on-time shipment protection
    •100% payment protection for your covered amount


    FAQ:


    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

    2. What’s the delivery time?
    It usually takes about 1- 3 days to produce samples.
    It usually takes about 3-7 days to produce the products.

    3. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.

    4. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.


    5. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.


    6. What is your terms of delivery?
    We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
