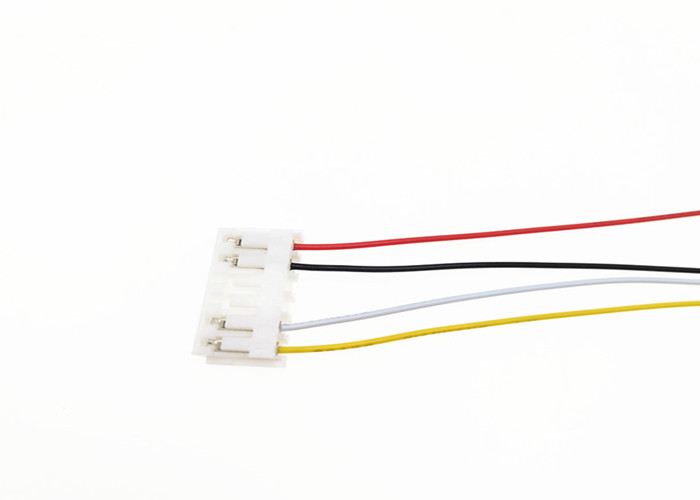

6pin jst-eh 6 ways crimp housing ref RS components 311-6243 2.5mm
pitch wire harness
Electrical Characteristics
| Material | All materials are compliant with Rohs |
| Connectors | Tyco, AMP, Molex, JST, JAE, Delphi or according to your
requirements. |
| Length | Customized or according to your requirements |
| Sample | Sample can be provided for evaluating |
| Connector Pole | 6Pin |
| Connector Pitch | 2.0mm and 1.25mm |
| Cable type | UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type |
| Cable color |
Optional |
| Processing ways | Crimping, pressing and soldering types. |
| Voltage rating | 250V AC,DC |
| Temperature range | -20℃~+85℃ |
| Insulation resistance | 1000MΩ/Minute |
| Withstanding voltage | 1000V AC/Min |
| Contact resistance | 20MΩ/Max |
What is Wire Harness :
Wire harness refers to the connector made of copper, which is
pressed with wire and cable, then externally plastic and pressed
insulator or metal shell, etc. to form a connecting circuit
component by bundling wire harness. Wire harness has many kinds and
wide application range. It can be used in automobiles, household
appliances, computers and communication equipment, various
electronic instruments and instruments, etc. But the form of each
type of harness is basically the same, and its components will not
change much.
Product Details:
Download EH Drawing Here:
EH
connector.pdf
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or
return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with
each other, the samples will be ready for 3-5 days. The samples
will be sent to you via express and arrive in 3-5 days. You can use
your own express account or prepay us if you do not have an
account.
4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire
harness & cable assembly design. Just let us know your ideas and we
will help to carry out your ideas into perfect products. It does
not matter if you do not have someone to complete files. Tell us
your detalied SPEC. of products, and we will send you finished
drawing for confirmation.
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to15 days. Generally
speaking, all of the goods can be reach your address within 4
weeks.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
