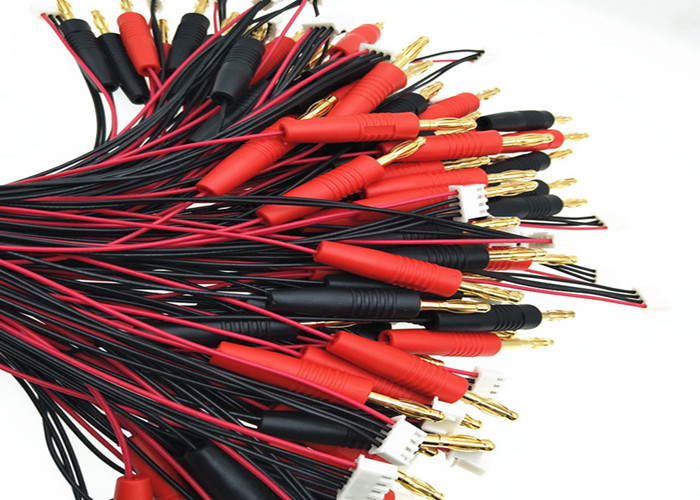

4pin jst xh plug 2.54mm to jst-xh2.54 with black red banana plug
cable wire harness
Electrical Characteristics:
| Series | XH Series Pressure welding Bar Connector(2.5mm) |
| ROW | Single row |
| POLES | 2-20P |
| PITCH | 2.5mm |
| MATERIAL | PA66 & Brass Tin |
| COLOR | White |
| FEATURES | Fire-proof, Flame retardancy |
| RATED VOLTAGE | 250V AC,DC |
| RATED CURRENT | 3A |
| CONTACT RESISTANCE | 20mΩ MAX |
| INSULATION RESISTANCE | 1000MΩ MIN |
| WITHSTAND VOLTAGE | 1000V AC/min |
| WORKING TEMPERATURE | -25℃~85℃ |
| APPLICABLE WIRES | AWG#28~#22 |
Wire Harness Applications:
1. Wire Harness for LCD
2. Wire Harness for Display
3. Wire Harness for Advertising machine
4. Wire Harness for Digital camera
5. Wire Harness for Notebook
6. Wire Harness for tablet PC
7. Wire Harness for HDD
We can produce series of wire harnesses:
| 1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
| 2.Electrical cable and wire harness |
| 3.Audio,Video,Radio cable and iso wire harness |
| 4.Industrial wire cable harness |
| 5.Home appliance wire harness |
| 6.Fuse wire ,game machine wire harness |
| 7.Power,LVDs,Flat RCA,USB cable harness |
| 8.Control and panel wiring cable assemblies |
| 9.Medical equipment cable and harness |
| 10.Airplane models wire harness |
Product Details:
Drawing:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choosing us for car wire harness ?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. More than 10years experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality.
3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire
harness & cable assembly design. Just let us know your ideas and we
will help to carry out your ideas into perfect products. It does
not matter if you do not have someone to complete files. Tell us
your detalied SPEC. of products, and we will send you finished
drawing for confirmation.
4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to15 days. Generally
speaking, all of the goods can be reach your address within 4
weeks.
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is
the most convenient or most cost-effective for you.
