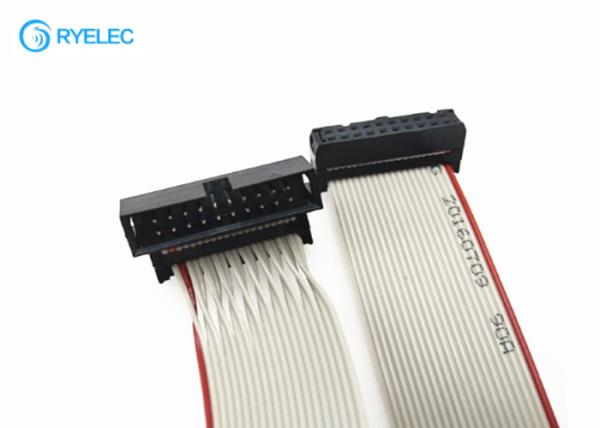

UL2651 20pin 2.54mm pitch male to female IDC connector flexible
flat ribbob cable
Electrical Characteristics
| Specifications |
Connector Pitch | 1.27,2.0,2.54mm |
| Poles | 6~64 |
| Matched Flat Cable pitch | 1.27mm IDC Socket =>0.635mm UL2678# 30(7*0.1) Flat Grey Cable |
| 2.0mm IDC Socket =>1.0mm UL2651# 28(7*0.12) Flat Grey Cable |
| 2.54mm IDC Socket =>1.27mm UL2651# 28(7*0.12) Flat Grey Cable |
| Current Rating | 1AMP |
| Connector | Traditional IDC or Molex equivalent
|
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate.
ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Good After-Sales Service: we could offer technical support or
return service in short time.
4. 1 Year Warranty.
5. OEM/ODM service.
FAQ:
1. How can I get quotation?
It is helpful for us to recommend the right item if we know your
detail description or specifications. Drawing and quotation will be
sent accordingly. Of course, it is best if we have your drawing.
2. How to buy the IDC Cable?
1). Tell us what pitch of the IDC Connector you want?
Options:1.27,2.0 & 54mm
2). Tell us what the Connectors No of pins you need.
3). Tell us if you need the Strain Relief or not.Price for with SR
or without SR is almost same.
4). Tell us the contact plating you need? Standard is Tin 50μ“ over
Nickle,if you have different requirement, pls tell us.
5). Could I buy lower than your MOQ request? Yes, it depends on the
cable length and number of pins.
3. Can I have samples?
Sample is ok.
