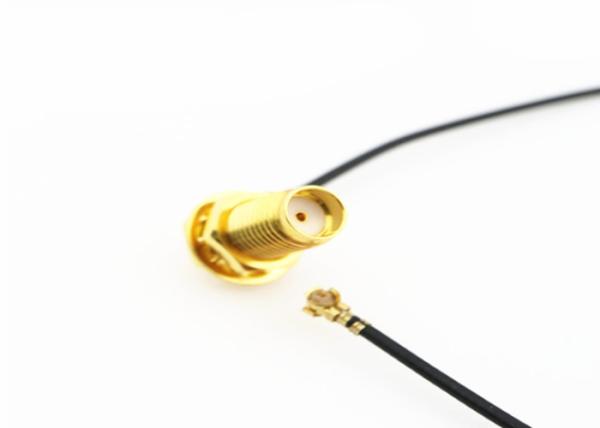

IPEX To SMA Flexible Coaxial Cable , Double Shielding Micro Coaxial Cable

Ask Lasest Price
Brand Name :	RY
Model Number :	RY-8543267
Certification :	CE,ROHS
Price :	USD0.88~2.88
Payment Terms :	L/C, T/T,Paypal, Western Union,
Supply Ability :	10000pcs
Delivery Time :	Shipped in 3 days after payment

Add to Cart

Product Details
Company Profile

IPEX To SMA Flexible Coaxial Cable , Double Shielding Micro Coaxial Cable

I-PEX SF66AL Mirco Coaxial RF Connector RG178 1.32mm double shielding Cable

Electrical Characteristics

Compliance	RoHs
Number of Conductors	1

Connector A

LTI-IPEXSF66AL (equivalent)

Connector B

U.FL (equivalent)

Cable

RG-178 grade cable (OD: 1.32mm double shielding)

MOQ

100

Lead time

3~4 days

ELECTRICAL DATA
Impedance	50Ω
Frequency range	DC-6Ghz
VSWR	1.3 max
Voltage	60V AC(rms)
Insulation Resisitance	500 MΩ min.
Insertion Loss	0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
Connector	fakra to sma
MATERIAL DATA
Bodies	Brass--gold plating
Pin contacts	Brass--gold plating
Socket contacts	Copper-beryllium alloy--Au plating
Insulator	PTFE
Cable type	0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240
Application	smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
Temperature range	-40°C to +80°C

Product Details:

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry.

2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

4.What’s your Shipping Methods?
By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
